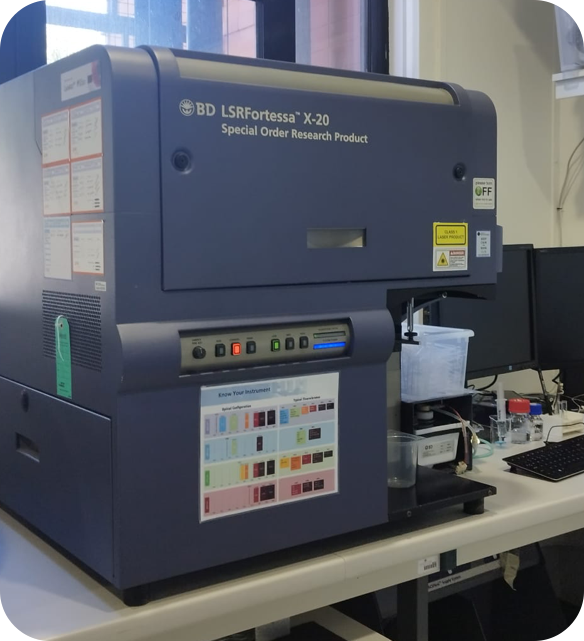

The BD LSRFortessa X-20 cell analyzer is a benchtop digital flow cytometer equipped with a fixed-alignment flow cell that is gel-coupled to the collection optics. It has four spatially separated lasers - 405 nm, 488 nm, 561 nm and 640 nm. Its primary function is to characterize complex populations of cells. Individual cells pass single file through a stream, which is interrogated by the four lasers with the emitted light being detected by photomultiplier (PMT) tubes. The system electronics calculates the time it takes a single cell to pass through each laser intercept and assigns the signal of each PMT to the appropriate cell. Besides fluorescence, the physical properties of the cell are also analyzed with side scatter (SSC), which reflects the internal complexity of a cell and forward scatter (FSC), which is roughly proportional to cell size. The sample flow rate can be set to low, medium and high values, which correspond approximately to 12, 35 and 60 μl/minute, respectively.

• Multicolor analysis of up to 16 parameters
• Four lasers with violet (405 nm), blue (488 nm), yellow-green (561 nm) and red (640 nm)

If you need multicolor analysis of more than 16 parameters, check the BD FACSymphony A5 SE or the CYTEK Aurora in Lisbon site and the CYTEK Aurora in Oeiras site.

If you need a high-throughput sampler, check the BD LSRFortessa or the CYTEK Aurora in Lisbon site and the CYTEK Aurora or the BD LSRFortessa SORP in Oeiras site.

Available 7 days a week, 24 hours a day for trained researchers.
