cytek_aurora_oeiras

Location: Oeiras Site, Room 0B01, Bartolomeu Dias Wing,
( 4625)

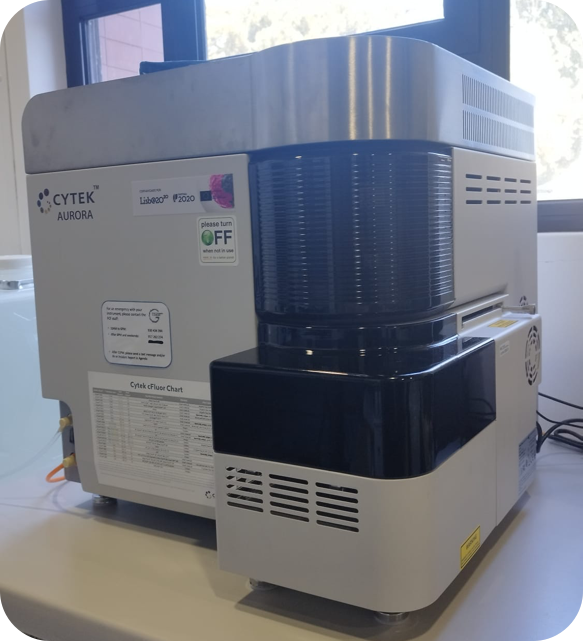

Manufacturer: Cytek
Model: Cytek Aurora
Nickname: "Aurora Oeiras"
Software: SpectroFlo 3.3.0
Year: 2020
SN: Y0611 + CD125 (Loader AMS)



Cytek Aurora Booking
Cytek Aurora Brochure

Next Scheduled Maintenances:

System overview

The Cytek Aurora leverages full spectrum technology to provide flexibility to scientists, enabling the use of a wide array of new fluorochrome combinations without reconfiguring the system for each application. The Aurora system delivers high-resolution data at the single-cell level to resolve the most challenging cell populations, such as cells with high autofluorescence or low levels of expression of key biomarkers, regardless of assay complexity.

  • 4 spatially separated lasers: Violet (405nm - 100mW), Blue (488nm - 50mW), Yellow Green (561nm - 50mW) and Red (640nm - 80mW)
  • 3 scatter channels: 488nm FSC, 405nm SSC, 488nm SSC
  • 48 fluorescent detectors:
    • V detector: 16 channels with optimized bandwidth from 420-829nm
    • B detector: 14 channels with optimized bandwidth from 498-829nm
    • YG detector: 10 channels with optimized bandwidth from 567-829nm
    • R detector: 8 channels with optimized bandwidth from 652-829nm
  • Fluidics
    • Vacuum-based fluidics system: manual acquisition from multiple tube formats
    • In-line flow meter: bead-less absolute cell count, bubble and clog detection
  • Auto Micro-Sampling System (AMS)
    • compatible with 96-well plates

If you need high parameter cell analysis, check also the BD FACSymphony A5 SE and the CYTEK Aurora in Lisbon site.

Configuration



Suggested Fluorochrome Peak Channels


Booking Rules

Available 7 days a week, 24 hours a day for trained researchers.
