Location: Room P2-A-49 ( 47224)

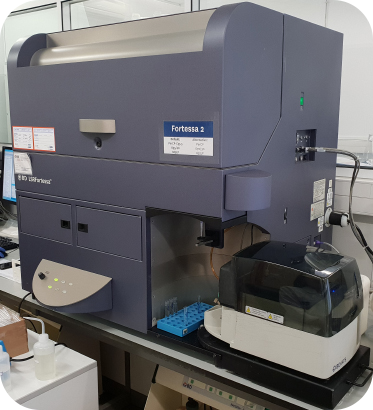

Manufacturer: BD Biosciences
Model: LSRFortessa
Nickname: "Fortessa"
Software: FACSDiva 6.2
Year: 2010
SN: H5B300009
BD LSRFortessa Booking
BD LSRFortessa Usage Statistics
BD LSRFortessa Brochure

Next Scheduled Maintenances: 26 June and 12 December

System overview

The BD LSRFortessa cell analyzer is a benchtop digital flow cytometer equipped with a fixed-alignment flow cell that is gel-coupled to the collection optics. It has four spatially separated lasers - 405 nm, 488 nm, 561 nm and 640 nm. Its primary function is to characterize complex populations of cells. Individual cells pass single file through a stream, which is interrogated by the three lasers with the emitted light being detected by photomultiplier (PMT) tubes. The system electronics calculates the time it takes a single cell to pass through each laser intercept and assigns the signal of each PMT to the appropriate cell. Besides fluorescence, the physical properties of the cell are also analyzed with side scatter (SSC), which reflects the internal complexity of a cell and forward scatter (FSC), which is roughly proportional to cell size. The sample flow rate can be set to low, medium and high values, which correspond approximately to 12, 35 and 60 μl/minute, respectively.

The LSRFortessa is equipped with a High Throughput Sampler (HTS), which allows the automated acquisition of samples from 96 and 384 well plates.

  • Four lasers: violet (405 nm), blue (488 nm), yellow-green (561 nm) and red (640 nm)
  • Multicolor analysis of up to 13 parameters

If you need multicolor analysis of more than 13 parameters, check the BD LSRFortessa X-20, the BD FACSymphony A5 SE or the CYTEK Aurora.

If you only need to analyse 4 parameters, check also the BD Accuri C6 Plus.

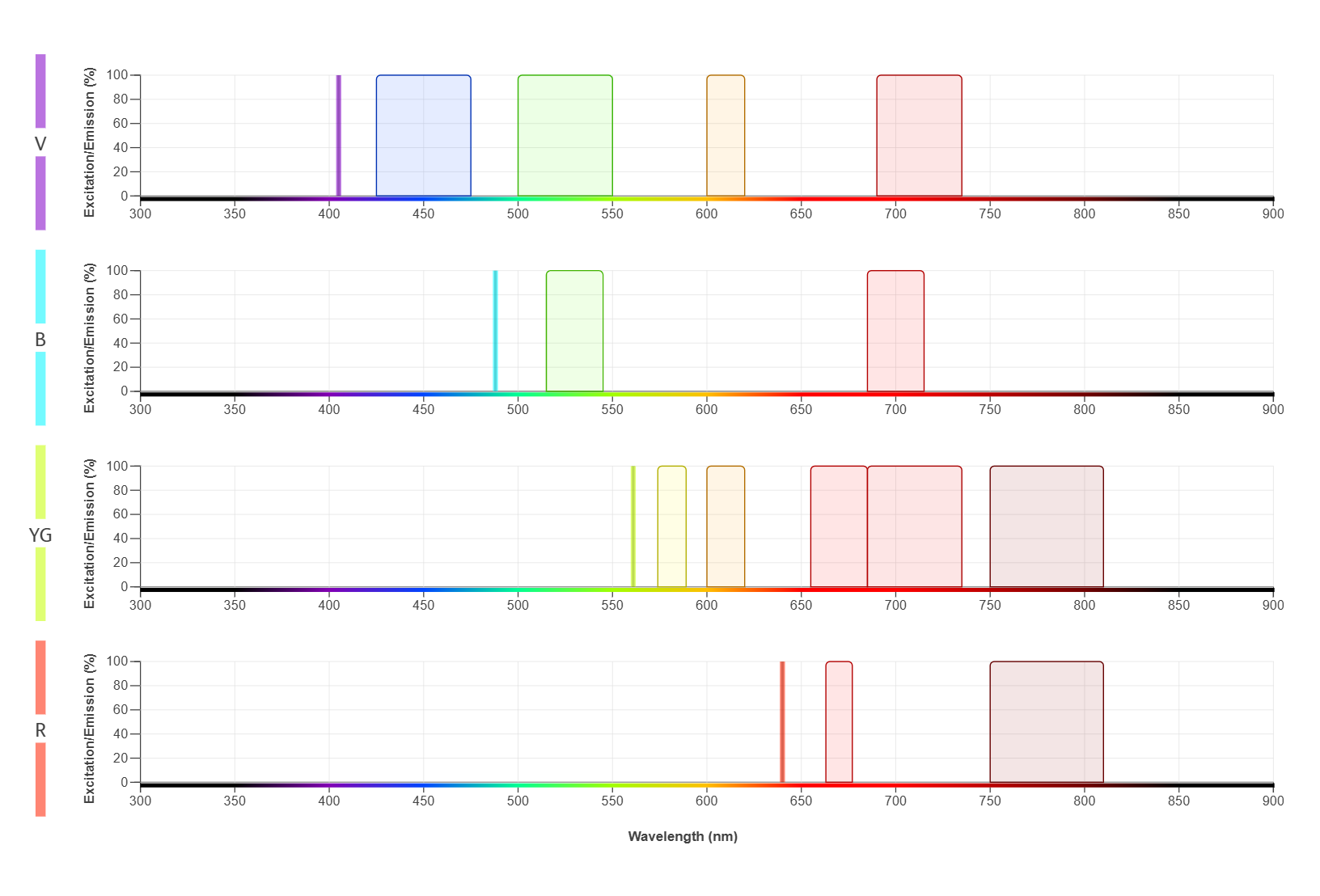

Fluorophores Compatibility

Additional Information

Booking Rules

Available 7 days a week, 24 hours a day for trained researchers.

Please check the User Guidelines for detailed information.
