zeiss_axiozoom_v16

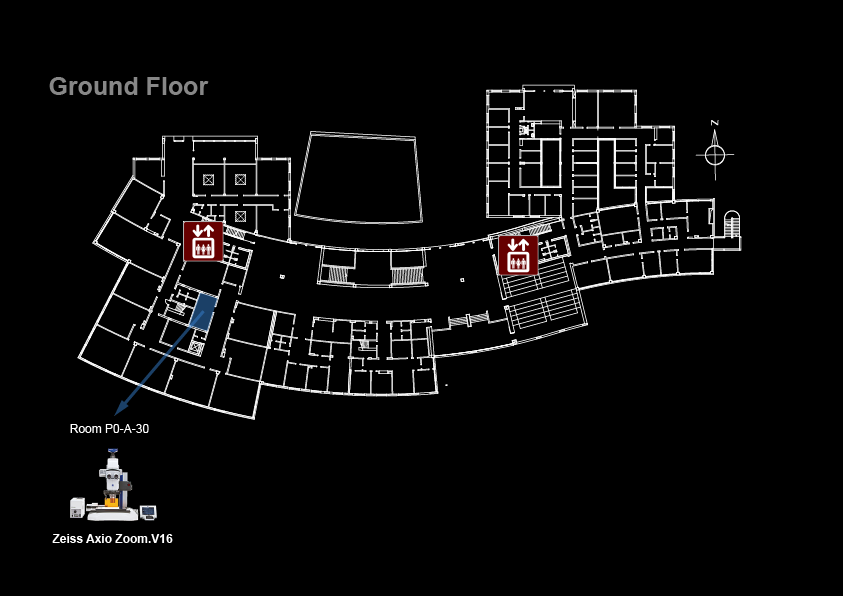

Location: Room P0-A-30
Manufacturer: ZEISS Microscopy
Model: Axio Zoom.V16
Nickname: "Axio Zoom"
Software: ZEN 2012 (blue edition)
Year: 2014
SN: 3941000138

Data will be deleted after: 3 months

Zeiss Axio Zoom.V16 Quality Control
Zeiss Axio Zoom.V16 Usage Statistics

Microscope overview

The Zeiss Axio Zoom.V16 is a fluorescence stereo microscope suitable for imaging large samples such as complete organisms. The system is equipped with fluorescence filters for GFP and RFP and a monochromatic camera (AxioCam MRm). With the Zeiss Axio Zoom.V16 you can perform multi-channel, Z-stack and time-lapse image acquisition of your samples, using a 1x objective with a high numerical aperture of NA 0.25.

Data files older than 3 months will be automatically deleted on this system, please copy your data to the iMM server using the desktop link.

System components

Filtersets

Position Filterset Reference Excitation Dichroic Emission
1 GFP FS38HE 450-490 nm 495 nm 500-550 nm
2 RFP FS63HE 559-585 nm 590 nm 600-690 nm
3 Empty
4 Blue FS01 359-371 nm 395 nm > 397 nm

Objectives

Magnification Model NA WD (mm) About
1x PlanNeoFluar Z 0.25 56 for visual magnification from 7x to 112x with eyepieces 10x

Camera

Model Type Frame Size Pixel Size (µm)
AxioCam MRm CCD 1388 X 1040 6.45 x 6.45
