System overview

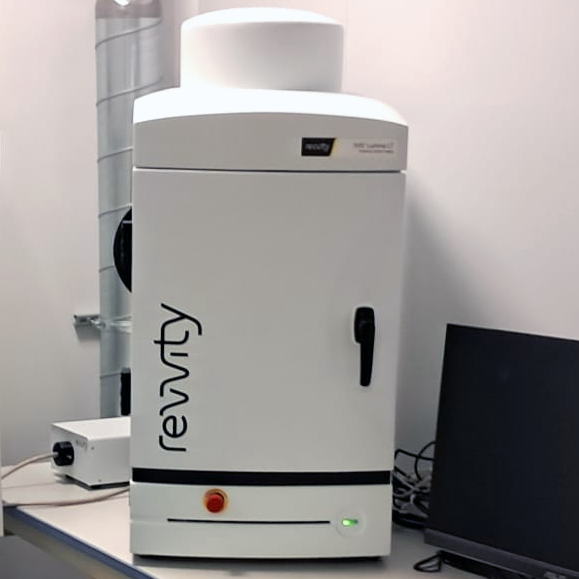

The IVIS Lumina LT fluorescence/bioluminescence imaging system is equipped with 2D bioluminescence, fluorescence, and radioisoptic (Cerenkov) imaging capabilities, providing high sensitivity, ease of use, and flexibility to image fluorescent and/or bioluminescent reporters both in vivo and in vitro. The system includes a highly sensitive CCD camera, a light-tight imaging chamber with complete computer automation, and the Living Image software package for image acquisition and analysis.
Features:
- 2D Bioluminescence
- 2D Fluorescence
- Radioisotopic Cerenkov Imaging
- Imaging of up to 5 mice
- Compute Pure Spectrum Spectral Unmixing
- Extended NIR Range
- Absolute Calibration to NIST® Standards
Data files older than 3 months will be automatically deleted on this system, please copy your data to the GIMM server using the desktop link.
Additionally, IVIS Lumina LT is equipped with a SomnoFlo® anaesthesia system for experiments with live animals using isoflurane. This system allows the use of smaller amounts of anaesthesia when carrying out live-imaging experiments, keeps mice stable during image acquisition, and reduces their recovery time, preventing the loss of animals. The setup is currently able to keep up to three mice receiving vaporized isoflurane inside the IVIS Lumina LT, while being imaged at the same time.
Users that are planning on using the anaesthesia system should contact the Rodent Platform's designated veterinarian, Daniel Costa (daniel.costa@gimm.pt), to schedule a training session.
System booking rules
System Specifications
- Camera sensor: Back-thinned, back-illuminated CCD
- CCD cooling temperature: -90 °C
- Frame size: 1024 x 1024 (default binning mode is 4×4 so acquired image is 256×256) ⇐ CONFIRM WITH STAFF!
- Pixel size: 13 μm (52 in small binning mode)
- Quantum Efficiency: >85% Efficiency 500-700 nm, >55% Efficiency 400-500 nm, >35% Efficiency 700-900 nm
- Minimum FOV: 5 x 5 cm
- Lens: f/.95 – f/16, 50 mm
- Sensitivity: 100 photons/s/cm²/sr
- Read noise: < 3 electrons for bin = 1, 2, 4; < 5 electrons for bin = 8, 16 ⇐ CONFIRM WITH STAFF!
- Dark Current: < 120 electrons/s/cm2; or 2 x 10-4 electrons/s/pixel (typical)
- Excitation fluorescence filters: 10
- Emmission fluorescence filters: 4
- Linear regime of camera is between 600 - 60 000 counts (avoid operating above 60k!)
Excitation and Emission Filtersets
| Excitation (nm) | Emission (nm) |
|---|---|
| 430 | 515 - 575 |
| 465 | 575 - 650 |
| 500 | 695 - 770 |
| 535 | 810 - 875 |
| 570 | |
| 605 | |
| 640 | |
| 675 | |
| 710 | |
| 745 |
