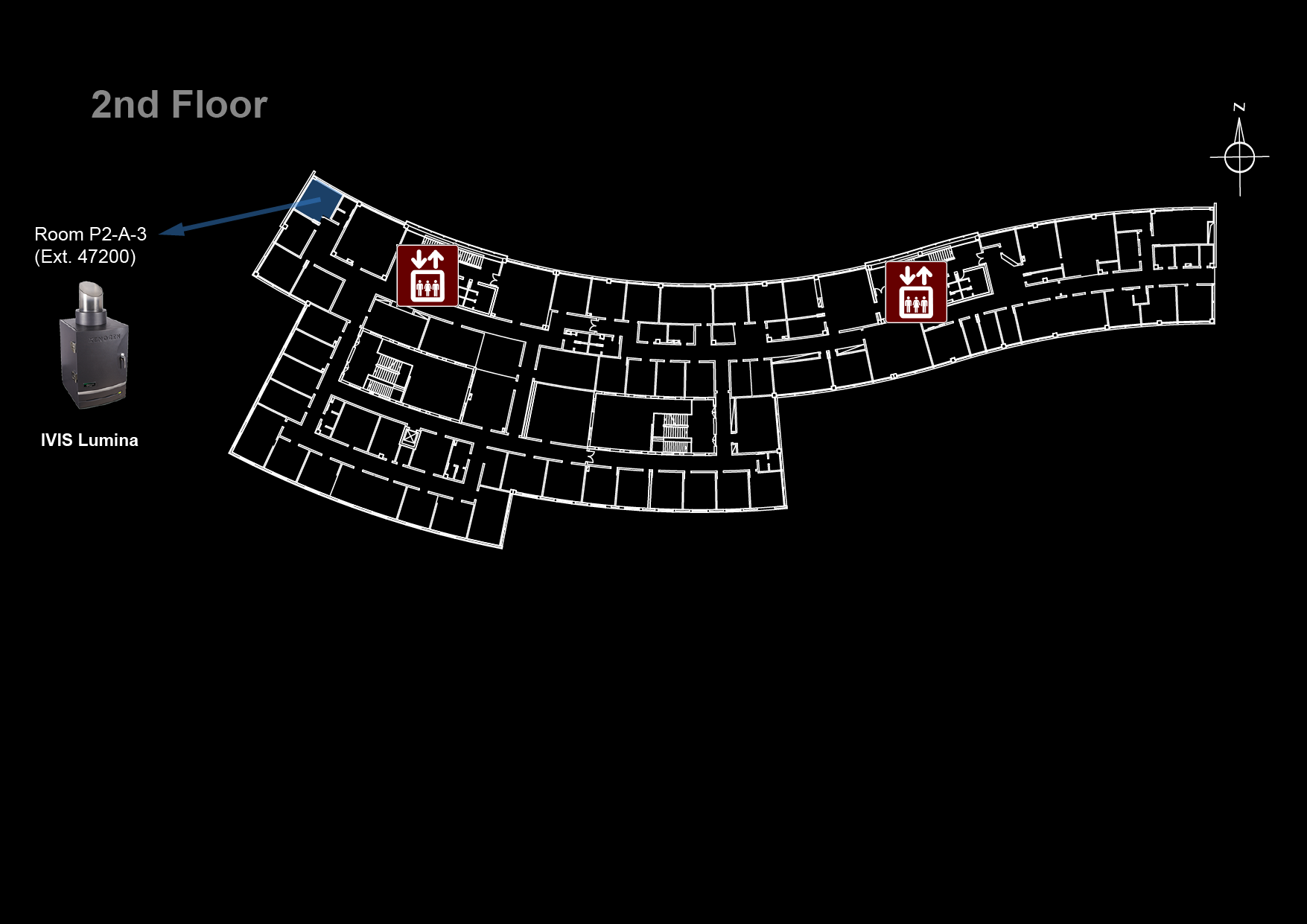

Location: Room P2-A-3 ( 47200)
Manufacturer: Perkin Elmer (Caliper LifeSciences)
Model: IVIS Lumina
Nickname: "Lumina"
Software: Living Image 3.0
Year: 2007
SN: IS0715N4196
Data will be deleted after: 3 months
IVIS Lumina Quality Control
IVIS Lumina Usage Statistics

System overview

The IVIS Lumina fluorescence/bioluminescence imaging system provides high sensitivity, ease of use, and flexibility to image fluorescent and/or bioluminescent reporters both in vivo and in vitro. The system includes a highly sensitive CCD camera, a light-tight imaging chamber with complete computer automation, and the Living Image software package for image acquisition and analysis.

An adjustable field of view from 5 – 12.5 cm allows imaging of up to 3 mice or a medium size rat and also accommodates standard microtiter plates for in vitro imaging. The system includes premium animal handling features such as a heated sample shelf, gas anesthesia connections and manifold.

Data files older than 3 months will be automatically deleted on this system, please copy your data to the iMM server using the desktop link.

System booking rules

You can book the system with 30 days in advance.


Filter Set Label Background Passband (nm) Excitation Passband (nm) Emission Passband (nm) Dyes / Fluorescent Proteins
1 Green 410–440 445–490 515–575 GFP, EGFP, FITC
2 Red 460–490 500–550 575–650 DsRed, PKH26
3 Far-red 580–610 615–665 695–770 Cy5.5
4 NIR 665–695 705–780 810–885 ICG

System Turn On Procedures

  • The system and computer should be turned on. If not please contact the Bioimaging Unit.
  • Check if the light source power supply is turned on (small box between the black box and the monitor).
  • If the computer shows the login screen, use the username administrator and password password.
  • When the desktop screen is displayed, start the Living Image software.
  • Enter a User ID (up to three letters) when promped, then click Done.
  • To initialize the system, click Initialize IVIS System in the System Control Panel.

System Turn Off procedures

The IVIS Lumina features an autocalibration protocol that runs automatically at night. For it to work both the system and computer should be left turned on.

  • Turn off the software but don't shut down the computer - you may log off if you wish.
  • Take the pad out of the chamber and clean it with ethanol.
  • Also clean with ethanol and paper tissues any other place (except the camera lenses or any optical components) that might have been in contact with tissues or fluids.

For a complete shutdown contact the Bioimaging Unit.

Imaging Basics

Centering a Subject

It is recommended to confirm that the subject is centered on the stage before acquiring an image.

  1. Place the subject on the center of the imaging stage and close the imaging chamber door.
  2. In the IVIS System Control panel, place a check mark in the Live check box. - The monitor displays an image of the subject.
  3. If the subject is centered, uncheck the Live check box and proceed with imaging. If the subject is not centered repeat step 1 and 2.

Glowing Materials

  • Always keep in mind that nearly EVERYTHING glows (that is, has the potential to phosphoresce and contaminate the image). Most plastics, almost all tape, all plants, paint, rodent food (mostly plants), mouse urine, and animal bedding have been found to glow. Use caution when introducing materials into the IVIS Lumina.
  • It is advisable to pre-screen all accessory items by imaging them alone, before imaging them with samples under study.
  • Try not to use powdered gloves when working with the equipment.

Back to the Equipment page
