Location: Room P0-A-30
Manufacturer: ZEISS Microscopy
Model: Axio Zoom.V16
Nickname: "Axio Zoom"
Software: ZEN 2012 (blue edition)
Year: 2014
SN: 3941000138

Data will be deleted after: 3 months

→ Zeiss Axio Zoom.V16 Quality Control
→ Zeiss Axio Zoom.V16 Usage Statistics

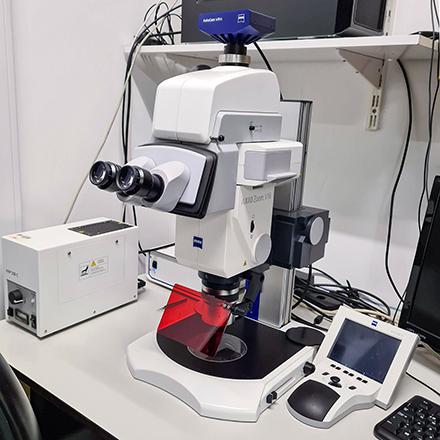

===== Microscope overview ===== The Zeiss Axio Zoom.V16 is a //fluorescence stereo microscope// suitable for imaging large samples such as complete organisms. The system is equipped with fluorescence filters for GFP and RFP and a monochromatic camera (AxioCam MRm). With the Zeiss Axio Zoom.V16 you can perform multi-channel, Z-stack and time-lapse image acquisition of your samples, using a 1x objective with a high numerical aperture of NA 0.25. {{:warning.png?25|}} Data files older than **3 months** will be automatically deleted on this system, please copy your data to the iMM server using the desktop link. ===== System components ===== ==== Filtersets ==== ^ Position ^ Filterset ^ Reference ^ Excitation ^ Dichroic ^ Emission ^ | 1 | GFP | [[https://www.micro-shop.zeiss.com/?s=163079566b5a5f8&l=en&p=us&f=f&a=v&b=f&id=489038-9901-000&o=|FS38HE]] | 450-490 nm | 495 nm | 500-550 nm | | 2 | RFP | [[https://www.micro-shop.zeiss.com/?s=163079566b5a5f8&l=en&p=us&f=f&a=v&b=f&id=489063-0000-000&o=|FS63HE]] | 559-585 nm | 590 nm | 600-690 nm | | 3 | Empty ||||| | 4 | Blue | [[https://www.micro-shop.zeiss.com/?s=163176628fcf844&l=en&p=us&f=f&a=v&b=f&id=488001-9901-000&o=|FS01]] | 359-371 nm | 395 nm | > 397 nm | ==== Objectives ==== ^ Magnification ^ Model ^ NA ^ WD (mm) ^ About ^ | 1x | PlanNeoFluar Z | 0.25 | 56 | for visual magnification from 7x to 112x with eyepieces 10x | ==== Camera ==== ^ Model ^ Type ^ Frame Size ^ Pixel Size (µm) ^ | [[https://qb3.berkeley.edu/wp-content/uploads/2020/07/Zeiss-AxioCam-MRm-Info_48-0065_e.pdf|AxioCam MRm]] | CCD | 1388 X 1040 | 6.45 x 6.45 | ---- [[resources|Back to the Equipment page]]
