Location: Lab 16 (floor 0)
Manufacturer: Leica Microsystems
Model: DM5000 B
Nickname: "5000B"
Year: 2006
SN: 269835

→ Leica DM5000B Quality Control
→ Leica DM5000B Usage Statistics

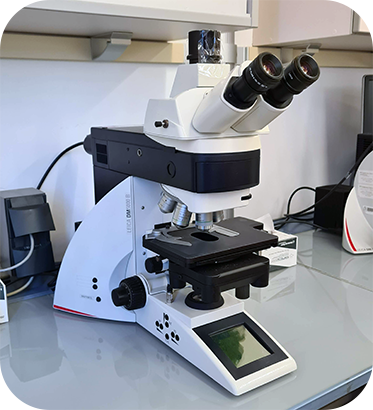

===== Microscope overview ===== The Leica DM5000B is an automated upright //widefield fluorescence microscope// ideal for checking FISH or other fixed fluorescence slides. The microscope is prepared for brightfield, phase contrast, DIC and polarization contrast techniques (check objectives list for contrast method availability). If you want to image live samples and/or perform time-lapse experiments check out the [[zeiss_axiovert_200m|Zeiss Axiovert 200M]] or the [[zeiss_cell_observer|Zeiss Cell Observer]] instead. If you need a color camera for brightfield images, try the [[leica_dm2500|Leica DM2500]]. ===== System components ===== ==== Filtersets ==== ^ Filterset ^ Reference ^ Excitation ^ Dichroic ^ Emission ^ Fluorochromes ^ | Blue | A4 | 340-380 nm | 400 nm | 450-490 nm | DAPI, Hoechst, Alexa350 | | Green | GFP | 450-490 nm | 500 nm | 500-550 nm | GFP, FITC, Alexa488 | | Red | N2.1 | 515-560 nm | 580 nm | > 590 nm | Rhodamine, Cy3, Texas Red | ==== Objectives ==== ^ Magnification ^ Model ^ Immersion ^ NA ^ WD (mm) ^ BF ^ PH ^ DIC ^ POL ^ Reference ^ | 5x | HC PL FLUOTAR | Air | 0.15 | 12.00 | ✔ | ✘ | ✘ | ✔ | 506504 | | 10x | HC PL FLUOTAR | Air | 0.30 | 11.00 | ✔ | ✔ | ✘ | ✔ | 506507 | | 20x | HC PL FLUOTAR | Air | 0.50 | 1.15 | ✔ | ✔ | ✔ | ✔ | 506506 | | 20x | HC PLAN APO | Air | 0.70 | 0.59 | ✔ | ✘ | ✔ | ✔ | 506166 | | 40x | HCX PL FLUOTAR | Air | 0.75 | 0.40 | ✔ | ✔ | ✔ | ✔ | 506145 | | 63x | HCX PL APO | Oil | 1.4-0.60 | 0.10 | ✔ | ✘ | ✔ | ✔ | 506187 | ---- [[resources|Back to the Equipment page]]
